Driveshaft Assembly & Balancing Equipment Manufacturers

Shaftmaker HD


The Shaftmaker HD is ideally suited for heavy duty shops that work on driveshafts for large trucks and industrial and off-highway equipment. With 14" of swing diameter and a 10 HP motor, you will be able to take on the big jobs your competition can't handle.


DESIGNED TO HANDLE DRIVESHAFTS FOR LARGE TRUCKS
PRESS-WELD-STRAIGHTEN-BALANCE ALL IN ONE MACHINE

Shaftmaker HD Specifications:

•  17' Tool Tray
•  17' Base
•  14" Swing
•  10 HP Motor
•  220 Three Phase Power
0-3000 RPM Digital Display
•  Strobe Balancing System
•  15 Ton Hydraulic System
•  Weight Capacity: 1000 lb.
•  Machine Weight: 3000 lb.
Footprint: 220"L x 35"W

SHAFTMAKER HD COMPLETE PACKAGE. Click for details.

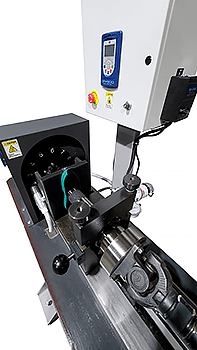

Shaftmaker HD side view
Click to enlarge
